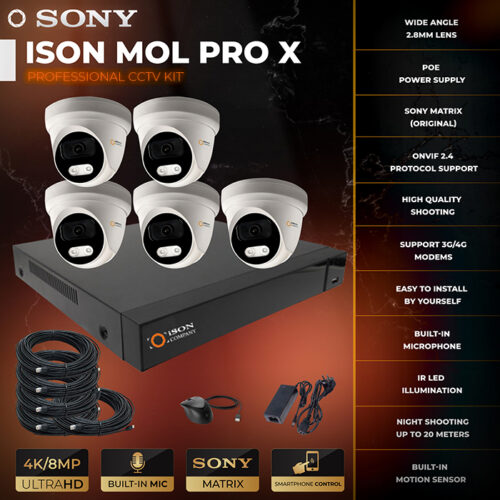

Professional IP POE cctv kit 8MP with audio recording 5 cameras ISON MOL PRO X-5
$1 247
Beschreibung
Prepared IP video surveillance system with audio recording ISON MOL PRO X for 5 cameras with power transmission over a single cable POE is a professional solution for home, cottage store and other objects where you need high quality audio and video recording. The system records in high-definition 4K. IP Video Surveillance System ISON MOL PRO X for 5 cameras 8 megapixels includes everything you need for a complete video surveillance system: IP cameras 8 megapixels with motion sensors, night illumination, high resolution 4K with built-in microphones with noise reduction, DVR, cable, connectors, switch, batteries. Ready-made IP video surveillance kit with audio recording ISON MOL PRO X 8 megapixels is easy to install yourself. The video surveillance system has all the latest features and capabilities from motion sensors to remote viewing from a smartphone and support for 3g/4g.
Characteristics of ISON MOL PRO X video surveillance system:
- High quality 8 megapixel shooting with digital IP transmission technology;
- Each camera has a built-in noise-canceling microphone;
- Video recorder for 8 channels. Possibility to connect additional cameras;
- Each camera has a built-in noise-canceling microphone;
- The technology transmits power over a single POE cable;
- Built-in POE switch;
- ISON-GO-Autostart-Technologie (wird bei Stromausfall nicht zurückgesetzt);
- The cameras have a high-quality sensor Sony
(Original); - 2.8mm wide angle lens;
- Adjustable viewing angle up to 120°;
- Unterstützt RTSP-Stream, Cloud-Aufnahme, Aufnahme auf entferntem Rekorder oder Server;
- Möglichkeit, das Archiv aus der Ferne über das Internet herunterzuladen;
- Supports RTSP stream, cloud, recording to remote recorder or server;
- The cameras record 20 frames per second Fps Echtzeit(Objekte in Bewegung sind nicht unscharf);
- Availability of your own free cloud;
- The cameras have WDR technology which solves the problem of poor or incorrect lighting as well as as the problem of frame light;
- The kit comes with everything you need for a video surveillance system;
- Built-in motion sensors;
- Powerful night illumination up to 20 meters;
- EASY INSTAL P2P technology provides self-installation by the average user on the principle – “Take it out of the box – plug it in". The kit has a complete set of all necessary presets and accessories for self-installation.
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Passt sich an jede Internetgeschwindigkeit an;
- Kostenlose Software zur Fernüberwachung;
- Intelligentes energiesparendes Heizsystem;
- Verbesserte IR-LED3.0 Nacht-Beleuchtung. 300% bessere Aufnahmequalität bei Nacht. Langlebigkeit bis zu 10 Jahren.
- Hohe Lichtempfindlichkeit Ozzy-IS ;
- H.265 codec support;
- Integrierter Programmzoom (Möglichkeit, Objekte während der Betrachtung zu vergrößern);
- High resolution 8 megapixel camera with 4K resolution;
- Der Anschluss des Systems ist in 15 Minuten erledigt, die Einrichtung der Anzeige auf Ihrem Mobiltelefon in 3 Minuten;
- Sie können sie von Ihrem Telefon, Tablet oder Computer überall auf der Welt ansehen;
- Unterstützt den Betrieb mit 3g/4g-Modems über einen Switch;
- Benötigt keine statische IP-Adresse;
- The cameras have 3D NR technology, which improves the quality of night photography by reducing noise and interference;
- High quality and reliability.
- Vandal resistant housing of outdoor cameras;
- New generation CORTEX PRO processor;
- Possibility of cable cameras
- Possibility of cable extension up to 200m (When using ISON cable);
- Record up to 180 days (with maximum hard disk);
- The temperature range of the cameras is from -60° to + 55°.
- 3 year warranty.
Composition of the set:
- Digital IP video recorder 8 megapixels for 8 channels ISON-NVR08POE;
- 5 all-weather outdoor IP cameras with built-in microphone POE ISON IP80S-SL-PRO;
- 5 ready-made coils of 18 meters twisted pair CAT copper cable for POE video surveillance systems with ready-made connectors;
- Power supply;
- 5 sets of dowels for camera mounting;
- 1 self-adhesive 250×150 PVC street sign surveillance ISON;
- Mouse for controlling the DVR;
- Hard drive mount;
- Markings for mounting the cameras;
- Protective caps for camera connectors;
- Warranty card.
Video about ISON MOL PRO X system:
Video review of the recorder ISON NVR08POE:
Video overview of ISON MOL PRO X NVR control menu:
Characteristics of video surveillance camera ISON IP80S-SL-PRO:
- Color, dome camera;
- Die Kamera ist universell einsetzbar und eignet sich sowohl für den Innen- als auch für den Außenbereich;
- Die Kamera hat WDR Technologie, die das Problem der schlechten oder falschen Beleuchtung sowie das Problem des Rahmenlichts löst;
- 4K recording resolution;
- PAL/NTSC-Fernsehsystem;
- Lichtempfindlichkeit 0,01 Lux;
- Signal-to-noise ratio >52dB;
- 2.8mm fixed wide-angle lens;
- High quality matrix Sony (Original);
- ISON-GO-Autostart-Technologie (wird bei Stromausfall nicht zurückgesetzt);
- Night IR illumination 20 meters LED;
- Horizontaler Betrachtungswinkel von 120°;
- The vertical viewing angle is 53°;
- Unterstützt den Betrieb mit 3g/4g-Modems über einen Switch;
- Availability of network protocols IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS;
- Unterstützt das ONVIF 2.4-Protokoll;
- The presence of a built-in motion detector;
- The camera sensor is a 1/2.8" IMX415 CMOS Sony sensor, Novatec SOC NT98560;
- Die Schutzklasse IP66 gewährleistet, dass die Kamera auch bei Regen betrieben werden kann, ohne dass die Objektive beschlagen;
- Passt sich an jede Internetgeschwindigkeit an;
- Kostenlose Software zur Fernüberwachung;
- Intelligentes energiesparendes Heizsystem;
- Verbesserte IR-LED3.0 Nacht-Beleuchtung. 300% bessere Aufnahmequalität bei Nacht. Langlebigkeit bis zu 10 Jahren.
- Hohe Lichtempfindlichkeit Ozzy-IS ;
- Availability of private area function 3;
- Availability of alarm notification function FTP, SMTP;
- Unterstützung für Cloud-Dienste;
- Presence of P2P function;
- The camera records 20 frames per second Fps Echtzeit(Objekte in Bewegung sind nicht unscharf);
- H.264/H.265/JPEG/AVI/MJPEG compression formats;
- Presence of image adjustments for saturation, brightness, contrast, clarity;
- Availability of Day/Night mode adjustments;
- Built-in microphone with noise canceling system;
- Unterstützt RTSP-Stream, Cloud-Aufnahme, Aufnahme auf entferntem Rekorder oder Server;
- Möglichkeit, das Archiv aus der Ferne über das Internet herunterzuladen;
- Supports RTSP stream, cloud, recording to remote recorder or server;
- Availability of a microSD card slot;
- Supports SD cards up to 512 gigabytes;
- Availability of power transmission technology over a single POE cable;
- The camera housing is metal, vandal-resistant;
- Betriebstemperatur -60° bis +55°;
- Powering the camera with POE;
- GPU-Klasse: U-47-PRO
- ISON TURBO-S40 Synchronisationsmodus;
- ISON-DIA Technologie;
- Energieklasse 89CF;
- Kern: 24ISQ;
- Die Kamera hat 3D NR Technologie, die die Qualität von Nachtaufnahmen durch die Reduzierung von Rauschen und Störungen verbessert;
- Live-Stream: UGT-2
- Klasse-Express-Multiplikator;
- Dank der Dome-Rotationstechnologie kann die Kamera sowohl an der Decke als auch an der Wand montiert werden;
- Each camera comes with installation instructions, product passport, warranty card, hardware, markings, protective cap.
- 3 year warranty;
Characteristics of ISON-NVR08POE video recorder:
- 8-channel IP video recorder (8 POE channels);
- Supports 8 ip cameras up to 8 megapixel resolution;
- ISON-GO-Autostart-Technologie (wird bei Stromausfall nicht zurückgesetzt);
- Compatible with all ISON IP cameras;
- Supports cameras with built-in microphone;
- Supports CCTV cameras with zoom;
- Supports rotating PTZ cameras;
- Support for cameras with motion sensors;
- Supports work with 3g/4g modems (for connection you need router);
- Processor Recorder ARM Cortex A7 Quad-core Processor;
- Embedded LINUX operating system;
- The channel width is 80Mb;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Support resolutions 3840×2160, 2590×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc;
- Availability of video output 1 VGA, 1 HDMI;
- Audio bitrate 64 kbps;
- G.711 audio compression standard;
- Support for cameras with motion sensors;
- Availability of the function of sending e-mail messages in case of motion sensor operation;
- Recording an archive up to 180 days (with maximum hard disk);
- VGA output 1920×1080/1280×1024/1280×720;
- HDMI output;
- Built-in program zoom;
- New generation CORTEX PRO processor;
- Supports controllable rotating cameras, PTZ zoom cameras;
- Supports H264/H265 codecs;
- Passt sich an jede Internetgeschwindigkeit an;
- Kostenlose Software zur Fernüberwachung;
- Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480); - PAL recording frequency: 4K@10x25fps,5MP@16×25fp,4MP@16×25fp,3MP@16×25fp,1080P@16×25fp,960P@16×25fp,720P@16×25fp,D1@16×25fp
NTSC: 4K@10x30fps,5MP@16×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp,960P@16×30fp,720P@16×30fp,D1@16×30fp; - GPU Class: P-12
- ISON TURBO synchronization mode;
- Matrix type: PFE-PREMIUM;
- ISON-DIA Technologie;
- Intelligent Cabling;
- Energy Class 89HD;
- Core: 15ISQ;
- Live stream: UGT
- Klasse-Express-Multiplikator;
- USB data copying capability;
- Network interface 9 RJ45 10M/100M Ethernet;
- POE outputs 8 (output power – not more than 15.4 W per channel);
- POE EXTENDED technology, Signal transmission range up to 200m (When using ISON cable);
- Availability of network functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P;
- Presence of Onvif 2.4 protocol;
- WEB support IE8-11, Google Chrome (IE Tab), Firefox (IE Tab);
- CMS support for Windows 10 / Windows Vista / Windows 7 / Windows 8;
- Verfügbarkeit unseres eigenen kostenlosen Cloud-Dienstes;
- Availability of remote viewing function from smartphone iPhone, iPad, Android, Android PAD;
- Support 1 hard disk drive up to 8TB, 3.5" form factor, SATA connector;
- Availability of 2 USB ports 2.0;
- Power supply unit of the recorder 52V / 2.5A;
- Operating temperature -10~55℃/10~90%;
- Includes brief instructions, control mouse, power supply, hard disk mount.
- Dimensions (L x W x H) 260*215*43(mm);
- Weight: 2kg (Without hard disk);
- Die Garantie von ISON beträgt 3 Jahre.
