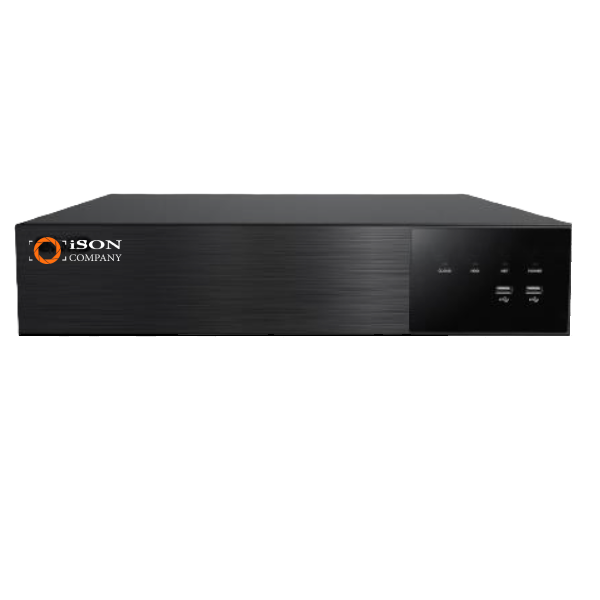

Professional 64 channels IP NVR with POE power ISON-NVR64POE

Descrizione

Professional 64 channel IP recorder with POE power supply. Compatible with all ISON cameras. Supports remote viewing option from smartphone as well as remote viewing option of recording archive from smartphone or computer. Supports all types of Internet, cameras with built-in microphone, with electronic optical zoom, PTZ control. Latest generation processor. High quality ISON brand! Official warranty 3 years.

ISON-NVR64POE video recorder characteristics:

• 64 channel IP video recorder with built-in POE power supply (16 POE);
• Supports ip cameras up to 12 megapixel resolution;
• Tecnologia di avvio automatico ISON-GO (non si resetta in caso di interruzione dell'alimentazione);
• Compatibile con tutte le telecamere IP ISON;
• Supporta le telecamere con microfono incorporato;
• Supporta telecamere CCTV con zoom;
• Supporta telecamere PTZ rotanti;
• Supporto per telecamere con sensori di movimento;
• Supporta il funzionamento con modem 3g/4g (per la connessione è necessario un router);
• Supporta la visualizzazione remota da iPhone, iPad, Android, smartphone Android PAD;
• Disponibilità della funzione di invio di messaggi e-mail in caso di funzionamento del sensore di movimento;
• Registrazione di un archivio fino a 180 giorni (con il massimo del disco rigido);
• Supporta la registrazione a 25 fps Tempo reale(Gli oggetti in movimento non vengono sfocati);
• Funzione di sovrascrittura automatica dell'HDD (quando l'HDD è pieno, la registrazione non si interrompe e la sovrascrittura inizia automaticamente);
• Supporta il flusso RTSP, la registrazione su cloud, la registrazione su registratore o server remoto;
• Possibilità di scaricare l'archivio in remoto via Internet;
• Possibilità di copiare i dati via USB;
• Zoom integrato nel programma (possibilità di ingrandire gli oggetti durante la visualizzazione);
• Classe GPU: P-12
• Modalità di sincronizzazione ISON TURBO;
• Tipo di matrice: PFE-PREMIUM;
• Tecnologia ISON-DIA;
• Cablaggio intelligente;
• Classe energetica 89HD;
• Nucleo: 15ISQ;
• Main Processor Quad Cortex A53
• Operating System Embedded LINUX
• Video Input 64ch(12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF)
• Output 2*HD,1*VGA
• Audio Input 1 Port RCA, support 64CH IPC audio input
• Output 1 Port RCA(Linear, 1kΩ), HD output
• Audio Bit Rate 64kbps
• Audio Compression standard G711U, G711A, AAC, MP2L2
• Intercom support (two-way)
• Alarm Sensor Input 16CH Output 4CH
• Motion Detection 64Channel, MD Zones: 396 (22 × 18)
• Trigger Events Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center,
• Alarm Output
• Display HD Output1 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
• HD Output2 1920×1080, 1280×1024, 1280x720z, 1024×768
• VGA 1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split HDMI1/VGA: 1/4/6/8/9/13/16/17/25/36/64 HDMI2: 1/4/6/8/9/10/13/16
• Digital Zoom YES
• OSD Camera Title, Time, Recording, Motion Detection, Event Alarm
• Recording Video Compression H265/H264/H265+/H264+
• Resolution 12MP(4000*3000),8MP(3840×2160),6MP(3072*2048),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536) ,1080P(1920×1080),1280×1024,960P(1280×960),720P(1280×720),960H(960×480),D1 (720×576/720×480)
• Record Rate PAL：12MP@64CHx25fps,8MP@64CHx25fps,5MP@64CH×25fps,4MP@64CHx25fps,3MP@64CH×25fps,1080P@64CH×25fps, 960P@64CH×25fps,720P@64CH×25fps, D1@64CH×25fps
• NTSC: 12MP@64CHx30fps,8MP@64CHx30fps,5MP@64CH×30fps,4MP@64CH×30fpss,3MP@64CH×30fp,1080P@64CH×30fps, 960P@64CH×30fpss, 720P@64CH×30fp, D1@64CH×30fps
• Record Mode Manual\Timer\Motion Detection\ Alarm\Smart Event
• Playback & Backup Local Sync Playback 2CH 12MP@30fps,4CH 8MP@30fps,6CH 5MP@30fps,8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps
• Decode Capability 1080P(1920×1080)@480fps
• Remote Sync Playback YES
• Search Mode ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log
• Playback Functions Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
• Backup Mode USB Device/Network
• Network Interface 1xRJ45 10M/100/1000MAdaptive Ethernet Interface
• Incoming Bandwidth 640Mbps
• Outgoing Bandwidth 512Mbps
• Network Functions IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE Onvif Profile S, Profile T
• Web Browser Edge, IE8-11, Google Chrome , Firefox ,Safari
• CMS Software Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
• Cloud Support Yes
• Smart Phone iPhone, Android
• POE 16x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total
• Power Output≤ 200W, Support Plug and Play, Support network cable extended mode Max. 200M
• Storage Interface Type 8 SATA Hard Disk Interface (3.5" SATA)
• Capacity Up to 10 TB capacity for each HDD eSATA 1 eSATA
• Language UI Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh
• USB Interface Front panel 2 x USB2.0, Rear panel: 1 x USB3.0
• RS485 1port
• Power consumption 100-240V AC , 50/60Hz ≤20W(Without Hard Disk and POE)
• Working Environment -10℃～50℃, 10%～90%(humidity)
• Product Dimension(W×D×H) 440mm × 428mm × 90mm
• Net Weight 7.63kg(without HDD)
• Gross Weight 9.15kg(without HDD)

Composizione dell'insieme:

• Registratore video
• Alimentatore DVR
• Mouse USB
• Scatola di imballaggio
