ISON IP-IFD-80
ISON IP-IFD-80-2
ISON IP-IFD-80

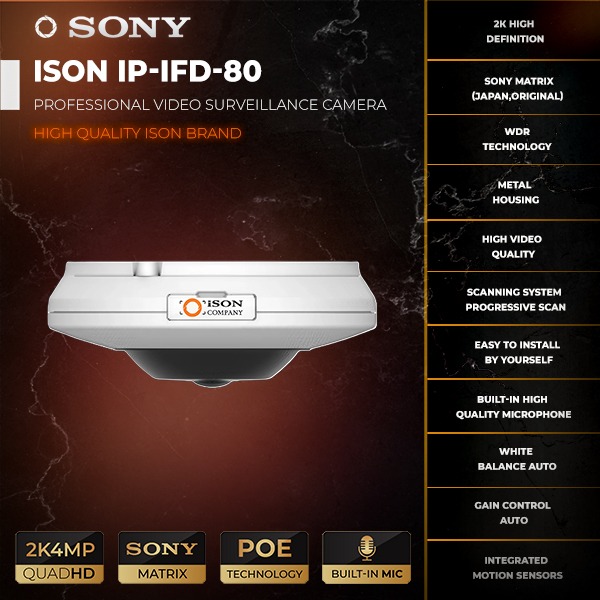

Professional Smart Digital IP POE CCTV security camera 4 megapixels with microphone ISON IP-IFD-80
Professional Smart Digital IP POE CCTV security camera 4 megapixels with microphone ISON IP-IFD-80
Professional Smart Digital IP POE CCTV security camera 4 megapixels with microphone ISON IP-IFD-80

Professional Smart Digital IP POE Wi-Fi CCTV security camera 4 megapixels with microphone ISON IP-IFD-80

Watch video review Video Recording Example Kit contents Characteristics
Selling CCTV? Get special wholesale prices!

$134

Here you can add a ready-made ISON video surveillance cable with video + power transfer connectors.

Here you can choose and add a video recorder.

Description

Professional high quality IP CCTV camera 4 megapixels with support for motion detection recording, night illumination up to 15 meters with POE power, built-in microphone. This CCTV camera has a high resolution shooting 4 megapixel 2K. Included are mounting dowels and screws. Indoor/Outdoor camera, color, suitable for use both indoors and outdoors. The body is cylindrical in metal. Cable, connectors and power supply for the camera is purchased separately. High quality ISON brand! Official warranty 3 years.

ISON IP-IFD-80 4MP CCTV Camera Characteristics:

  • The camera is a color, Indoor/Outdoor camera;
  • The camera has a high quality sensor Sony (Original);
  • The recording resolution is 4 megapixels;
  • Built-in high quality microphone with its own noise canceling system;
  • The camera has WDR technology which solves the problem of poor or wrong lighting, as well as the problem of frame light;
  • The camera is universal, suitable for use both indoors and outdoors;
  • PAL/NTSC television system;
  • Night illumination 15 meters LED;
  • The camera records 25 frames per second Fps Real Time(Objects in motion are not blurred);
  • ISON-GO auto-start technology (Will not reset when power failure occurs);
  • IP66 protection class ensures that the camera can operate in any rain without fogging the lenses;
  • Adapts to any internet speed;
  • Free remote viewing software;
  • Smart energy-saving heating system;
  • Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
  • High light sensitivity Ozzy-IS ;
  • Availability of network protocols IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS;
  • Supports ONVIF 2.4 protocol;
  • The presence of a built-in motion detector;
  • Availability of alarm notification function FTP, SMTP;
  • Support for cloud services;
  • Presence of P2P function;
  • Presence of image adjustments for saturation, brightness, contrast, clarity;
  • Availability of Day/Night mode adjustments;
  • Easy to connect the camera in 5 minutes, also easy to set up viewing on your cell phone in 3 minutes;
  • You can view from your phone, tablet or computer anywhere in the world;
  • Availability of our own free cloud service;
  • Does not require a static IP address;
  • Supports 3g/4g modems;
  • High quality build and video;
  • Supports RTSP stream, cloud recording, recording to remote recorder or server;
  • Possibility to download the archive remotely via the Internet;
  • Availability of power transmission technology over a single POE cable;
  • The camera housing is metal, vandal-resistant;
  • GPU Class: U-47-PRO
  • ISON-DIA Technology;
  • Energy Class 89CF;
  • Core: 24ISQ;
  • The camera has 3D NR technology that improves the quality of night photography by reducing noise and interference;
  • Live stream: UGT-2
  • ISON TURBO-S40 synchronization mode;
  • Class express multiplier;
  • Operating temperature -60° to +55°;

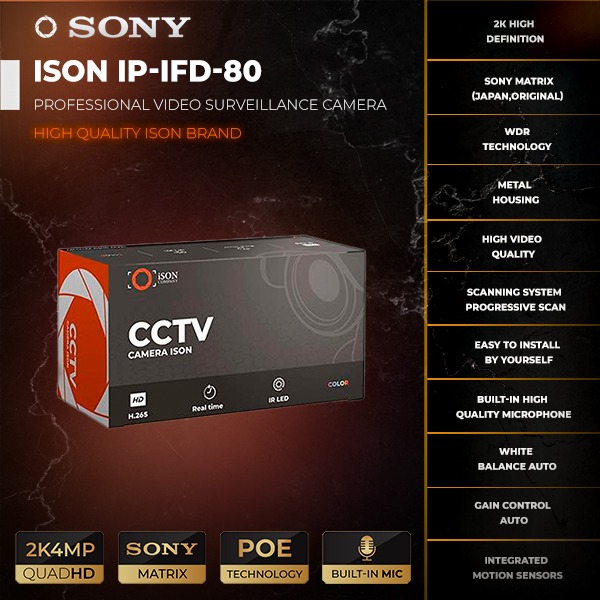

  • Each camera comes with installation instructions, product passport, warranty card, hardware, markings, protective cap.
  • ISON’s warranty is 3 years.
  • Camera Image Sensor 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • Effective Pixels 2616 (H)*1964 (V)
  • Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
  • Audio Compression G.711A/U, AAC
  • TV System PAL/NTSC
  • Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
  • Minimun Illumination Color: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR
  • S/N Ratio ≥52dB
  • Scanning System Progressive
  • Video Output Network
  • Reset Button Support
  • Focus Length Board Lens 1.1mm
  • Focus Control Fixed
  • Lens Type Fixed
  • Night Vision Infrared LED 42µx 3PCS
  • IR Status Auto Control
  • IR Power On Smart, Manual & Timed mode
  • Ethernet RJ-45 (10/100Base-T)
  • Protocol TCP/IP, IPv4/v6 ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x
  • ONVIF Support ONVIF 19.12(Profile S/T/G)
  • P2P YES, Support QR Code
  • POE Internal POE, Support IEEE 802.3af
  • Video Delay 0.3S (Within the Lan)
  • Main Stream 1 1920*1920@30fps
  • Main Stream 2 1536*1536@30fps
  • Main Stream 3 1024*1024@30fps
  • Sub Stream 1 1024*1024@30fps
  • Sub Stream 2 720*720@30fps
  • Sub Stream 3 512*512@30fps
  • Tri Stream 1024*1024@30fps
  • 720*720@30fps
  • 512*512@30fps
  • IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
  • Smart Phone iPhone, Android
  • Wireless Antena 3dbi
  • Wi-Fi Wi-Fi(IEEE802.11b/g/n),2.4Ghz
  • WIFI Range No obstacles 100m Max.
  • AI Function: Intelligent Analysis N/A
  • Day/Night Color/ B&W (IR-CUT )
  • Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,Anti Flicker, Video Tampering, HLC
  • ROI Support
  • Defog Mode Support
  • BLC Support
  • WDR HDR: 120dB
  • Motion Detection Support
  • Privacy Masking 3 Rectangular Zone
  • Recording Mode NVR/VMS/Web/SD Card
  • Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese
  • Audio Audio IN/OUT by Line (3.5mm audio interface), Built in Mic and Speaker
  • Alarm 1 Channel Input/Ouput
  • SD Card Slot External, Support Max 1TB, Built in 4G Storage
  • Housing Body: Metal, Bracket: Plastic
  • IR Cut Filter YES
  • Power Source DC12V±10%, 550mA
  • Dimension ￠120 x 49(H) mm
  • Weight 500g
