Description

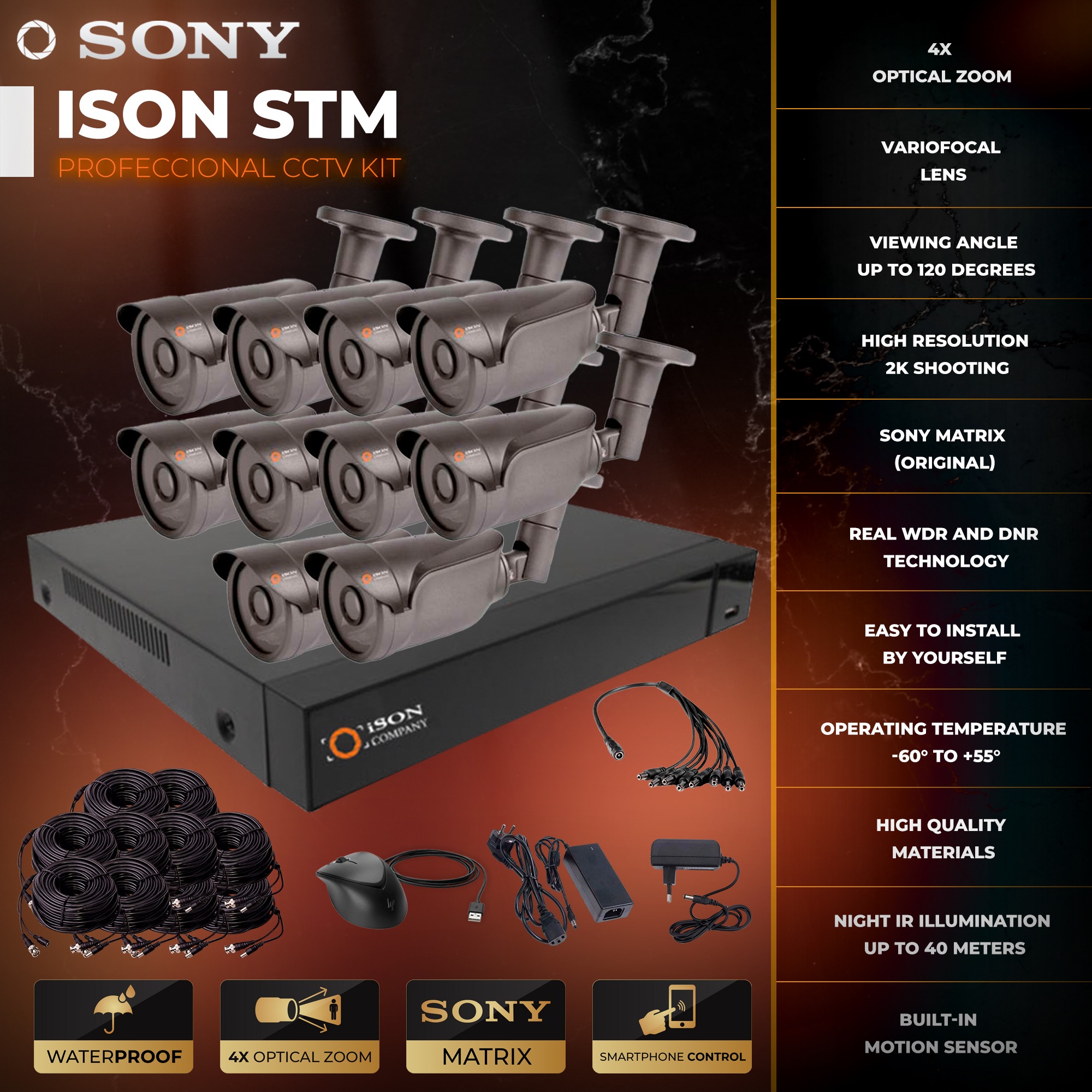

The ready-made 2 megapixel AHD video surveillance system for 10 1080p cameras with 2.8-12mm varifocal cameras provides high quality footage in 2 megapixel resolution. ISON STM for 10 cameras has 2.8-12mm vario-focal cameras and has options to customize the viewing angle and zoom. The system is designed for surveillance of objects of high importance. The system records in high definition Full HD 1080p.
Characteristics of the video surveillance system ISON STM:
- Variofocal lens 2.8-12mm;
- The ability to point a 4x zoom;
- Adjustable viewing angle up to 120°;
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Possibility to download the archive remotely via the Internet;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- The cameras have a high-quality sensor Sony
(Original); - The cameras have WDR technology which solves the problem of poor or incorrect lighting as well as the problem of frame light;
- The cameras have DNR technology, which improves the quality of night shooting by reducing noise and interference from the coaxial cable;
- Digital system with a hybrid DVR working in all modes IP/AHD/TVI/CVI;
- The kit comes with everything you need for a video surveillance system;
- Includes step-by-step video instructions for self-installation and setup;
- Built-in motion sensors;
- Powerful night illumination up to 60 meters;
- EASY INSTAL P2P technology provides self-installation by the average user on the principle – “Take it out of the box – plug it in". The kit has a complete set of all necessary presets and accessories for self-installation.
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Adapts to any internet speed;
- Free remote viewing software;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- H.265 codec support;
- Built-in program zoom (ability to zoom in on objects while viewing);
- High definition 2 megapixel Full HD camera with a resolution of 1920 by 1080 pixels;
- Easy to connect the system in 15 minutes, just as easy to set up viewing on your cell phone in 3 minutes;
- You can view from your phone, tablet or computer anywhere in the world;
- Does not require a static IP address;
- Supports operation with 3g/4g modems via switch;
- Up to 4 additional microphones can be connected;
- High quality build and video.
- New generation CORTEX PRO processor;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Vandal resistant housing of outdoor cameras;
- Record up to 180 days (with maximum hard disk);
- The temperature range of the cameras is from -60° to + 55°.
- 3 year warranty.
Video about ISON AHD50S-CU CCTV camera:
Video review of ISON DVR16P recorder:
Composition of the set:
- Digital video recorder for 16 channels ISON-DVR16P;
- 10 all-weather full HD 1080p variofocal cameras ISON AHD50S-CU 2MP;
- 10 finished coils of cable 18 meters with video+power connectors;
- 3 power supply;
- 2 Power splitter;
- 1 self-adhesive 250×150 PVC street sign surveillance ISON;
- 10 camera mounting brackets;
- 10 sets of dowels for camera mounting;
- Mouse for controlling the DVR;
- Hard drive mount;
- Hexagon for adjusting the cameras;
- Product passport, warranty card.
Features ISON AHD50S-CU 2MP CCTV Camera:
- Color AHD, outdoor camera with 4x mechanical zoom;
- The camera is universal, suitable for use both indoors and outdoors;
- The camera has a high quality sensor Sony (Original);
- Availability of AHD/CVBS/TVI/CVI hybrid output;
- The camera resolution is 2 megapixels 1080P, 1920×1080;
- PAL/NTSC television system;
- Light sensitivity 0.001 Lux;
- Signal-to-noise ratio >50dB;
- Variofocal lens 2.8-12 mm;
- Night IR LED illumination up to 60 meters 42µ x 4 pcs;
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- Adjustable viewing angles;
- Built-in 5x zoom;
- Maximum horizontal viewing angle up to 120°;
- CCTV camera sensor 1/2.8" 2MP CMOS sensor SONY IMX335;
- EN771T camera processor;
- The vertical viewing angle is 56°;
- Availability of OSD, Sense-up functions;
- The camera has WDR technology which solves the problem of poor or wrong lighting, as well as the problem of frame light;
- The camera has DNR technology, which improves the quality of night shooting by reducing noise and interference from the coaxial cable;
- The housing is dust and water resistant;
- The protection class of the camera housing is IP66;
- GPU Class: U-47-PRO
- ISON-DIA Technology;
- Energy Class 89CF;
- Core: 24ISQ;
- Live stream: UGT-2
- ISON TURBO-S40 synchronization mode;
- Class express multiplier;
- The case is vandal resistant;
- The camera is powered by 12V, 700mA;
- Operating temperature -60° to +55°;
- Camera size 200 x 171 x 83 mm;
- Included with each camera, instruction manual, hardware, warranty card.
- ISON’s warranty is 3 years.
Features of ISON-DVR16P video recorder:
- 16-channel video recorder (up to 32 IP channels, 16 AHD channels) with support for all ISON cameras;
- Supports 16 AHD cameras up to 5 megapixels;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- Hybrid operation format: AHD, HD-CVI, HD-TVI. IP;
- Recording resolution; 5MP(2592×1944 16*6k/s), 5MP_HALF(1296×1944 16*10k/s), 4MP(2560×1440 16*8k/s), 4MP_HALF(1280×1440 16*15k/s), 3MP(2048×1536 16*9k/ ),3MP_Lite(1024×1536 16*18k/s), 1080P(1920×1080 16*15k/s),720P(1280×720 16*25k/s), 960H(960×576 16*25k/s);
- Video outputs: 1xHDMI /1xVGA /1xCVBS;
- Audio inputs/output: RCA 4CH In/ 1CH Out (Audio inputs work only when connecting AHD cameras, when using IP cameras inputs are not active);
- Ability to connect up to 2 microphones or up to 32 IP cameras with built-in microphones;
- Supports H264/H265 codecs;
- Adapts to any internet speed;
- Free remote viewing software;
- Supports cameras with built-in microphone;
- Supports CCTV cameras with zoom;
- Supports rotating PTZ cameras;
- Support for cameras with motion sensors;
- Supports work with 3g/4g modems (for connection you need router);
- Supports 2 SATA hard disks up to 10TB each;
- Built-in program zoom (ability to zoom in on objects while viewing);
- Availability of remote viewing function from a phone (iPhone, iPad, Android Phone);
- Video outputs: HDMI, VGA, USB, Audio;
- Supports rotary cameras with RS485 protocol;
- Power supply: DC 12V ≤6W;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Record up to 180 days (with maximum hard disk);
- GPU Class: P-12
- ISON TURBO synchronization mode;
- Matrix type: PFE-PREMIUM;
- ISON-DIA Technology;
- Intelligent Cabling;
- Energy Class 89HD;
- Core: 15ISQ;
- Live stream: UGT
- Class express multiplier;
- Simultaneous playback from all channels in maximum lossless resolution;
- USB interface 2 USB 2.0;
- ONVIF2.4 compatibility protocol;
- 12V / 4A power supply unit;
- New generation CORTEX PRO processor;
- Operating temperature -10~55℃/10~90%
- Dimensions (L x W x H) 310 x 295 x 43 mm
- Availability of Bitvision’s own free cloud:
- 3 year warranty.
