Description
Ready-made IP video surveillance system for 5 cameras POE 4mpx ISON KOVO-5 is one of the most powerful of existing professional video surveillance systems. The system has a high resolution of 4 megapixels with variofocal motorized lenses 2.7-13.5mm (the ability to control the zoom from a smartphone, tablet or computer being anywhere in the world). IP video surveillance system for 5 cameras POE 4mpx ISON KOVO-5 is available in sets of 1,2,4,6,8,16,32 and 64 cameras. You can order IP video surveillance system for 5 cameras in our online store as with a hard disk or without. Video surveillance kit 5 cameras includes everything you need: cable, connectors, variofocal motorized cameras with motion sensors, night illumination high resolution 4 megapixels, recorder, power supply for NVR, power splitter and fasteners.
Characteristics of the video surveillance system ISON KOVO:
- High quality 4 megapixel shooting with digital IP transmission technology;
- The technology transmits power over a single POE cable;
- Built-in POE switch;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- The cameras have a high-quality sensor Sony
(Original); - Variofocal lens 2.7-13.5mm;
- Built-in digital 5x zoom, the ability to control the camera zoom remotely via smartphone, recorder or computer;
- Control camera zoom from your smartphone, tablet or computer;
- Built-in autofocus;
- Adjustable viewing angle up to 120°;
- EASY INSTAL P2P technology provides self-installation by the average user on the principle – “Take it out of the box – plug it in". The kit has a complete set of all necessary presets and accessories for self-installation.
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Possibility to download the archive remotely via the Internet;
- The cameras have WDR technology which solves the problem of poor or incorrect lighting as well as the problem of frame light;
- The cameras have Starlight-PRO technology, which improves the quality of night shooting and extends the shooting coverage;
- The kit comes with everything you need for a video surveillance system;
- Built-in motion sensors;
- Powerful night illumination up to 40 meters;
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Adapts to any internet speed;
- Free remote viewing software;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- H.265 codec support;
- Built-in program zoom (ability to zoom in on objects while viewing);
- The cameras record 25fps Real Time(Objects in motion are not blurred);
- Availability of your own free cloud;
- High resolution 4 megapixel camera with 2K resolution;
- Easy to connect the system in 15 minutes, just as easy to set up viewing on your cell phone in 3 minutes;
- You can view from your phone, tablet or computer anywhere in the world;
- Supports operation with 3g/4g modems via switch;
- Does not require a static IP address;
- The cameras have 3D NR technology, which improves the quality of night photography by reducing noise and interference;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- High quality and reliability.
- Vandal resistant housing of outdoor cameras;
- New generation CORTEX PRO processor;
- Record up to 180 days (with maximum hard disk);
- Possibility of cable extension up to 200m (When using ISON cable);
- The temperature range of the cameras is from -60° to + 55°.
- 3 year warranty.
Videos about ISON IP50SAF-CW CCTV cameras:
Video review of the recorder ISON NVR08POE:
Video overview of ISON KOVO NVR control menu:

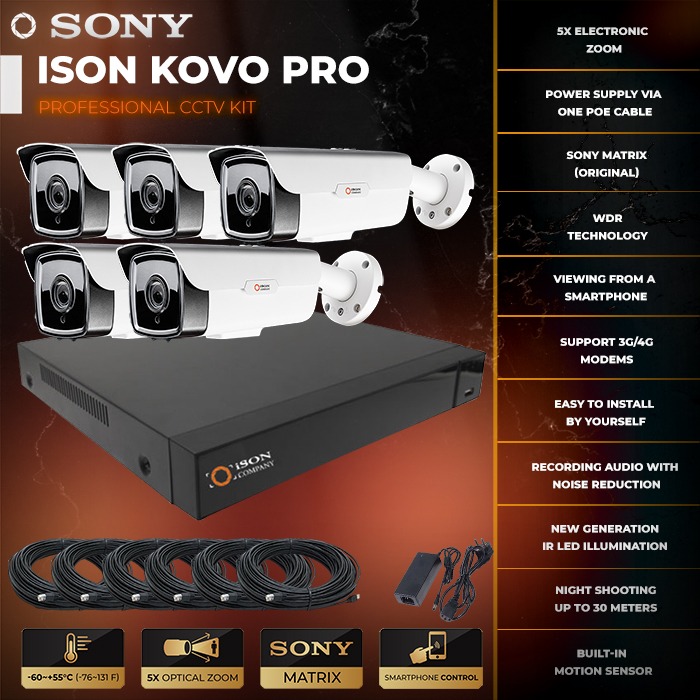

Composition of the set:
- IP video recorder with built-in POE for 8 cameras ISON-NVR08POE;
- 5 all-weather 4 megapixel motorized ip cameras ISON IP50SAF-CW 4MP;
- 5 ready-made coils of 18 meters twisted pair CAT copper cable for POE video surveillance systems with ready-made connectors;
- Power supply;
- 1 self-adhesive 250×150 PVC street sign surveillance ISON;
- 5 camera mounting brackets;
- 5 sets of dowels for camera mounting;
- Mouse for controlling the NVR;
- Hard drive mount;
- Hexagon for adjusting the angle of tilt and rotation of the cameras;
- Markings for mounting the cameras;
- Protective caps for camera connectors;
- Warranty card;
Features ISON IP50SAF-CW 4MP CCTV Camera:
- IP color camera, outdoor, POE, with 5x electronic zoom;
- The camera has a high quality sensor Sony (Original);
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- The camera has WDR technology which solves the problem of poor or wrong lighting, as well as the problem of frame light;
- The camera has Starlight-PRO technology, which improves the quality of night shooting and extends the shooting coverage;
- Built-in motion sensor;
- Powerful night IR LED illumination up to 40 meters;
- High resolution 4 megapixel 2K camera with a resolution of 2560 by 1910 pixels;
- The camera records 25fps Real Time(Objects in motion are not blurred);
- Built-in autofocus function;
- Easy to connect the camera in 5 minutes, also easy to set up viewing on your cell phone in 3 minutes;
- You can view from your phone, tablet or computer anywhere in the world;
- Availability of our own free cloud service;
- Does not require a static IP address;
- Supports operation with 3g/4g modems via switch;
- High quality build and video;
- Outdoor enclosure;
- 1/2.8" SONY (Original) Starvis Back-illuminated CMOS sensor 5 megapixels;
- HISILICON Hi3516D processor;
- Audio input, it is possible to connect a microphone;
- Presence of the RESET button;
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Variofocal wide-angle motorized lens 2.7-13.5mm;
- Built-in 5x zoom;
- Ability to control zoom remotely via recorder, computer, tablet or smartphone;
- IP66 protection class ensures that the camera can operate in any rain without fogging the lenses;
- Adapts to any internet speed;
- Free remote viewing software;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- Recording resolution 2560×1910@20 fps, 2304×1296@30 fps, 1920×1080@30 fps;
- POE single cable power transmission technology;
- PAL/NTSC television system;
- Light sensitivity 0.01 Lux;
- Adjustable horizontal viewing angle up to 120°;
- The vertical viewing angle is 65°;
- Availability of network protocols IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS;
- Availability of RJ45 network interface;
- Supports ONVIF 2.4 protocol;
- FTP, SMTP alarm event notification function;
- Support for cloud services;
- P2P, QR support;
- H.264/H.265/JPEG/AVI/MJPEG compression formats;
- GPU Class: U-47-PRO
- ISON TURBO-S40 synchronization mode;
- ISON-DIA Technology;
- Energy Class 89CF;
- Core: 24ISQ;
- The camera has 3D NR technology that improves the quality of night photography by reducing noise and interference;
- Live stream: UGT-2
- Class express multiplier;
- Image adjustments for saturation, brightness, contrast, sharpness;
- IP digital transmission technology provides better video detail and color reproduction than AHD cameras;
- 12V, 1000mA or IEEE 802.3af power supply;
- Size￠162 x 88 x 86 mm
- Operating temperature -60° to +55°;
- Metal case;
- Included with the camera installation instructions, warranty card, hardware.
- ISON’s warranty is 3 years.
Characteristics of ISON-NVR08POE video recorder:
- 8-channel IP video recorder (8 POE channels);
- Supports 8 ip cameras up to 8 megapixel resolution;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- Compatible with all ISON IP cameras;
- Supports cameras with built-in microphone;
- Supports CCTV cameras with zoom;
- Supports rotating PTZ cameras;
- Support for cameras with motion sensors;
- Supports work with 3g/4g modems (for connection you need router);
- Processor Recorder ARM Cortex A7 Quad-core Processor;
- Embedded LINUX operating system;
- The channel width is 80Mb;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Support resolutions 3840×2160, 2590×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc;
- Availability of video output 1 VGA, 1 HDMI;
- Audio bitrate 64 kbps;
- G.711 audio compression standard;
- Support for cameras with motion sensors;
- Availability of the function of sending e-mail messages in case of motion sensor operation;
- Recording an archive up to 180 days (with maximum hard disk);
- VGA output 1920×1080/1280×1024/1280×720;
- HDMI output;
- Built-in program zoom;
- New generation CORTEX PRO processor;
- Supports controllable rotating cameras, PTZ zoom cameras;
- Supports H264/H265 codecs;
- Adapts to any internet speed;
- Free remote viewing software;
- Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480); - PAL recording frequency: 4K@10x25fps,5MP@16×25fp,4MP@16×25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp
NTSC: 4K@10x30fps,5MP@16×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp,960P@16×30fp,720P@16×30fp,D1@16×30fp; - GPU Class: P-12
- ISON TURBO synchronization mode;
- Matrix type: PFE-PREMIUM;
- ISON-DIA Technology;
- Intelligent Cabling;
- Energy Class 89HD;
- Core: 15ISQ;
- Live stream: UGT
- Class express multiplier;
- USB data copying capability;
- Network interface 9 RJ45 10M/100M Ethernet;
- POE outputs 8 (output power – not more than 15.4 W per channel);
- POE EXTENDED technology, Signal transmission range up to 200m (When using ISON cable);
- Availability of network functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P;
- Presence of Onvif 2.4 protocol;
- WEB support IE8-11, Google Chrome (IE Tab), Firefox (IE Tab);
- CMS support for Windows 10 / Windows Vista / Windows 7 / Windows 8;
- Availability of our own free cloud service;
- Availability of remote viewing function from smartphone iPhone, iPad, Android, Android PAD;
- Support 1 hard disk drive up to 8TB, 3.5" form factor, SATA connector;
- Availability of 2 USB ports 2.0;
- Power supply unit of the recorder 52V / 2.5A;
- Operating temperature -10~55℃/10~90%;
- Includes brief instructions, control mouse, power supply, hard disk mount.
- Dimensions (L x W x H) 260*215*43(mm);
- Weight: 2kg (Without hard disk);
- ISON’s warranty is 3 years.
