Description
Prepared IP video surveillance system with audio recording ISON MOL PRO X with power transmission over a single cable POE is a professional solution for home, cottage store and other objects where you need high quality audio and video recording. The system records in high-definition 4K format. IP Video Surveillance System ISON MOL PRO X for 8 megapixels with sound recording includes everything you need for a complete video surveillance system: IP cameras 8 megapixels with motion sensors, night illumination, high resolution 4K with built-in microphones with noise reduction, video recorder, cable, connectors, switch, batteries. Ready-made IP video surveillance kit with audio recording ISON MOL PRO X 8 megapixels is easy to install yourself. The video surveillance system has all the latest features and capabilities from motion sensors to remote viewing from a smartphone and support for 3g/4g.
Characteristics of ISON MOL PRO X video surveillance system:
- High quality 8 megapixel shooting with digital IP transmission technology;
- Each camera has a built-in noise-canceling microphone;
- The technology transmits power over a single POE cable;
- 2.8mm wide angle lens;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- The cameras have a high-quality sensor Sony
(Original); - Wide viewing angle of 120°;
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Possibility to download the archive remotely via the Internet;
- The cameras record 20 frames per second Fps Real Time(Objects in motion are not blurred);
- Availability of your own free cloud;
- EASY INSTAL P2P technology provides self-installation by the average user on the principle – “Take it out of the box – plug it in". The kit has a complete set of all necessary presets and accessories for self-installation.
- The cameras have WDR technology which solves the problem of poor or incorrect lighting as well as as the problem of frame light;
- The kit comes with everything you need for a video surveillance system;
- Built-in motion sensors;
- Powerful night illumination up to 20 meters;
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Adapts to any internet speed;
- Free remote viewing software;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- H.265 codec support;
- Built-in program zoom (ability to zoom in on objects while viewing);
- High resolution 8 megapixel camera with 4K resolution;
- Easy to connect the system in 15 minutes, just as easy to set up viewing on your cell phone in 3 minutes;
- You can view from your phone, tablet or computer anywhere in the world;
- Supports operation with 3g/4g modems via switch;
- Does not require a static IP address;
- The cameras have 3D NR technology, which improves the quality of night photography by reducing noise and interference;
- High quality and reliability;
- Vandal resistant housing of outdoor cameras;
- New generation CORTEX PRO processor;
- Possibility of cable extension up to 200m without loss of quality (When using ISON cable);
- Record up to 180 days (with maximum hard disk);
- The temperature range of the cameras is from -60° to + 55°.
- 3 year warranty.

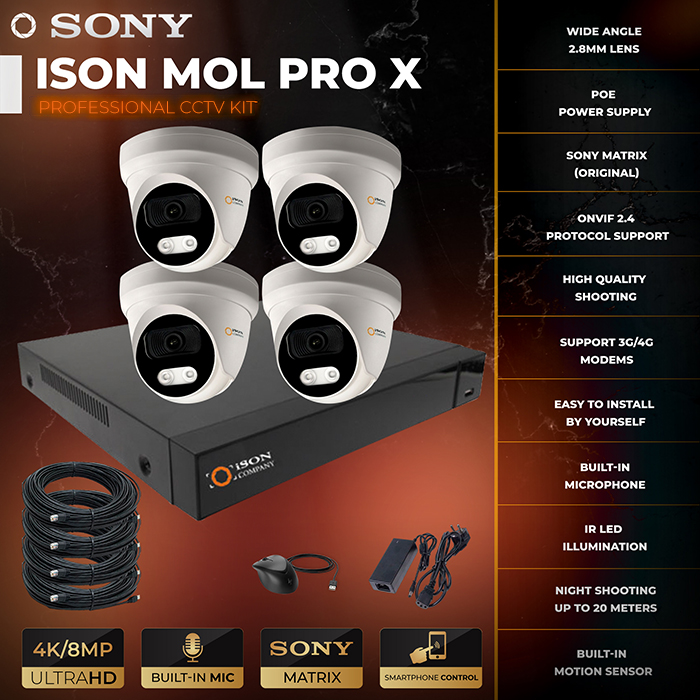

Composition of the set:
- Digital video recorder for 4 channels with built-in POE switch ISON-NVR04POE;
- 4 all-weather outdoor IP cameras with built-in microphone POE ISON IP80S-SL-PRO;
- 4 finished coils of 18 meter twisted pair CAT copper cable for POE video surveillance systems with finished connectors;
- Connectors for connecting video cameras;
- Power supply;
- 1 sign ison video surveillance;
- 4 sets of dowels for camera mounting;
- Mouse for controlling the DVR;
- Hard drive mount;
- Markings for mounting the cameras;
- Protective caps for camera connectors;
- Warranty card.
Video about ISON MOL PRO X system:
Video overview of ISON MOL PRO X NVR control menu:
Characteristics of video surveillance camera ISON IP80S-SL-PRO:
- Color, dome camera;
- The camera is universal, suitable for use both indoors and outdoors;
- The camera has WDR technology which solves the problem of poor or wrong lighting, as well as well as the problem of frame light;
- 4K recording resolution;
- PAL/NTSC television system;
- Light sensitivity 0.01 Lux;
- Signal-to-noise ratio >52dB;
- 2.8mm fixed wide-angle lens;
- High quality matrix Sony (Original);
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- Night IR illumination 20 meters LED;
- Horizontal viewing angle of 120°;
- The vertical viewing angle is 53°;
- Supports operation with 3g/4g modems via switch;
- Availability of network protocols IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS;
- Supports ONVIF 2.4 protocol;
- The presence of a built-in motion detector;
- The camera sensor is a 1/2.8" IMX415 CMOS Sony sensor, Novatec SOC NT98560;
- IP66 protection class ensures that the camera can operate in any rain without fogging the lenses;
- Adapts to any internet speed;
- Free remote viewing software;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- Availability of private area function 3;
- Availability of alarm notification function FTP, SMTP;
- Support for cloud services;
- Presence of P2P function;
- The camera records 20 frames per second Fps Real Time(Objects in motion are not blurred);
- H.264/H.265/JPEG/AVI/MJPEG compression formats;
- Presence of image adjustments for saturation, brightness, contrast, clarity;
- Availability of Day/Night mode adjustments;
- Built-in microphone with noise canceling system;
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Possibility to download the archive remotely via the Internet;
- Supports RTSP stream, cloud, recording to remote recorder or server;
- Availability of a microSD card slot;
- Supports SD cards up to 512 gigabytes;
- Availability of power transmission technology over a single POE cable;
- The camera housing is metal, vandal-resistant;
- Operating temperature -60° to +55°;
- Powering the camera with POE;
- GPU Class: U-47-PRO
- ISON TURBO-S40 synchronization mode;
- ISON-DIA Technology;
- Energy Class 89CF;
- Core: 24ISQ;
- The camera has 3D NR technology that improves the quality of night photography by reducing noise and interference;
- Live stream: UGT-2
- Class express multiplier;
- Thanks to the dome rotation technology, the camera can be mounted to both ceiling and wall;
- Each camera comes with installation instructions, product passport, warranty card, hardware, markings, protective cap.
- 3 year warranty;
Features of ISON-NVR04POE video recorder:
- 4 channel IP video recorder with built-in POE power supply;
- Supports ip cameras up to 8 megapixel resolution;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- Compatible with all ISON IP cameras;
- Supports cameras with built-in microphone;
- Supports CCTV cameras with zoom;
- Supports rotating PTZ cameras;
- Support for cameras with motion sensors;
- Supports work with 3g/4g modems (for connection you need router);
- Support remote viewing from iPhone, iPad, Android, Android PAD smartphone;
- Availability of the function of sending e-mail messages in case of motion sensor operation;
- Recording an archive up to 180 days (with maximum hard disk);
- Availability of the function of sending e-mail messages in case of motion sensor operation;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Possibility to download the archive remotely via the Internet;
- USB data copying capability;
- Built-in program zoom (ability to zoom in on objects while viewing);
- Supports 1 hard disk up to 8TB;
- Availability of 2 USB ports 2.0;
- ARM Cortex A9 Processor (HI3520D);
- Embedded LINUX operating system;
- Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480) - Recording frequency: PAL :4K@8x25fps,5MP@9×25fp,4MP@9×25fp,4MP@9×25fp,4MP@9×25fp,3MP@9×25fp,1080P@9×25fp,960P@9×25fp,720P@9×25fp,D1@9×25fp NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
- GPU Class: P-12
- ISON TURBO synchronization mode;
- Matrix type: PFE-PREMIUM;
- ISON-DIA Technology;
- Intelligent Cabling;
- Energy Class 89HD;
- Core: 15ISQ;
- Live stream: UGT
- Class express multiplier;
- Video outputs 1 VGA, 1 HDMI;
- Availability of RCA audio input;
- Availability of RCA output (1kOhm);
- The audio bitrate is 64kBit;
- G.711 audio compression standard;
- Availability of digital zoom function;
- Supports H264/H265 codecs;
- Adapts to any internet speed;
- Free remote viewing software;
- Record up to 25 frames per second Real Time;
- Copying to a USB flash drive;
- Network interface 5 RJ45 10M/100M Ethernet;
- 4 x 100Mb POE ports up to 15.4W;
- POE power transmission range up to 200 meters (When using ISON cable);
- Supports HTTP, TCP/IP, IPv4, UPNP, RTSP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P;
- Onvif 2.4 support;
- WEB support IE8-11, Google Chrome (IE Tab), Firefox (IE Tab);
- CMS support for Windows 10 / Windows Vista / Windows 7 / Windows 8;
- Cloud service (P2P) Yes;
- New generation CORTEX PRO processor;
- Availability of remote viewing function from iPhone, iPad, Android, Android PAD smartphones;
- Simultaneous playback from all channels in maximum lossless resolution;
- Supports up to 10TB SATA hard disk drive;
- Supplied complete with 52V / 1.25A power supply;
- Bitvision cloud service;
- Operating temperature -10°~55° at relative humidity 10~90%;
- Dimensions of the NVR (L x W x H) 220 x 219 x 50 mm;
- ISON’s warranty is 3 years.
