Description
Ready-made video surveillance system for home and cottage ISON PRO S for 2 cameras is one of the most popular video surveillance kits for self-installation. System ISON PRO S is available in sets of 1, 2, 4, 6, 8, 16 and 32 cameras. You can order a video surveillance system ISON for home and cottage in our online store as with a hard disk or without. Video surveillance kit ISON for 2 cameras includes everything you need: cable, connectors, wide-angle cameras with motion sensors, night illumination, high resolution 2 megapixels, recorder, power supply for DVR, power supply for CCTV cameras, power splitter and fasteners. Ready-made system for home and cottage ISON for 2 cameras is of high quality and reliability.
Characteristics of ISON Pro S video surveillance system:
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- The cameras have a high-quality sensor Sony
(Original); - The cameras have DWDR technology which solves the problem of poor or wrong lighting, as well as the problem of frame light;
- The cameras have 3D NR technology that improves night shooting by reducing noise and interference from the coaxial cable;
- Digital system with a hybrid DVR working in all modes IP/AHD/TVI/CVI;
- Wide viewing angle of 120°;
- Supports RTSP stream, cloud recording, recording to remote recorder or server;
- Possibility to download the archive remotely via the Internet;
- The DVR supports cameras up to 5 megapixels;
- The kit comes with everything you need for a video surveillance system;
- The cameras record 20fps Real Time(Objects in motion are not blurred);
- Includes step-by-step video instructions for self-installation and setup;
- Built-in motion sensors;
- EASY INSTAL P2P technology provides self-installation by the average user on the principle – “Take it out of the box – plug it in". The kit has a complete set of all necessary presets and accessories for self-installation.
- Powerful night illumination up to 20 meters;
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Adapts to any internet speed;
- Free remote viewing software;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- H.265 codec support;
- Built-in program zoom (ability to zoom in on objects while viewing);
- High definition 2 megapixel Full HD camera with a resolution of 1920 by 1080 pixels;
- Easy to connect the system in 15 minutes, just as easy to set up viewing on your cell phone in 3 minutes;
- You can view from your phone, tablet or computer anywhere in the world;
- Supports operation with 3g/4g modems via switch;
- Does not require a static IP address;
- Up to 4 additional microphones can be connected;
- High quality build and video;
- New generation CORTEX PRO processor;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Vandal resistant housing of outdoor cameras;
- Record up to 180 days (with maximum hard disk);
- The temperature range of the cameras is from -60° to + 55°.
- 3 year warranty.

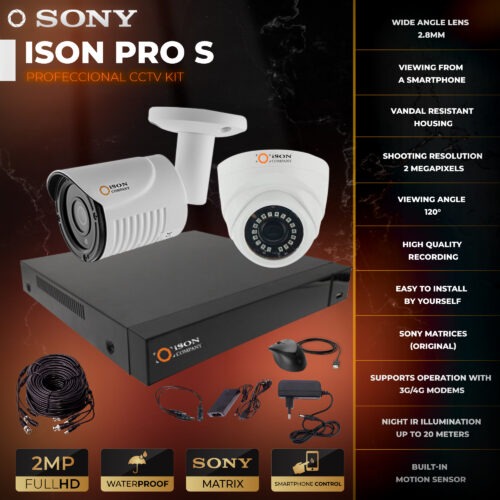

Composition of the set:
- Digital hybrid video recorder for 4 cameras ISON DVR04P;
- 1 all-weather 2 megapixel camera ISON AHD20S-CD;
- 1 dome indoor 2 megapixel ISON AHD20F-PL camera;
- 2 18 meter coils of cable with connectors;
- 2 power supplies;
- 2 camera mounting brackets;
- Power splitter for 2 cameras;
- 2 sets of dowels for camera mounting;
- Mouse for controlling the DVR;
- Hard drive mount;
- Hexagon for adjusting the cameras;
- Markings for mounting the cameras;
- Product passport, warranty card.
Video review of CCTV camera ISON AHD20S-CD:
Video review of ISON AHD20F-PL CCTV camera:
Video overview of ISON PRO S DVR control menu:
Features ISON AHD20S-CD CCTV Camera:
- The camera has a high quality sensor Sony (Original);
- Camera resolution: 1080P FULL HD, 2 megapixels, 1920×1080 pixels;
- PAL/NTSC TV system;
- Light sensitivity 0.01 Lux;
- Signal-to-noise ratio >50dB;
- 2.8mm wide-angle lens;
- The camera records 20fps Real Time(Objects in motion are not blurred);
- Night IR LED illumination with a range of 20 meters ￠5mm x 24pcs;
- Horizontal viewing angle of 120°;
- The vertical viewing angle is 56°;
- OSD function, Sense-up function;
- The camera has DWDR technology which solves the problem of poor or wrong lighting, as well as the problem of frame light;
- The camera has 3D NR technology that improves night shooting by reducing noise and interference from the coaxial cable;
- IP66 protection class of outdoor cameras provides operation of cameras in any rain without fogging of lenses;
- Smart energy-saving heating system;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- The camera is dustproof;
- Camera sensor: SONY (Original) 1/2.8" 2 megapixel IMX307 + FH8536H;
- Hybrid output: AHD/CVBS/TVI/CVI;
- GPU Class: U-47-PRO
- ISON TURBO-S40 synchronization mode;
- ISON-DIA Technology;
- Energy Class 89CF;
- Core: 24ISQ;
- Live stream: UGT-2
- Class express multiplier;
- 12V, 500mA power supply;
- Operating temperature -60° to +55°;
- Size ￠151 x 64 x 66 mm;
- Each camera comes with installation instructions, warranty card, hardware.
- ISON’s warranty is 3 years.
Features ISON AHD20F-PL CCTV camera:
- Color, camera 2 megapixel dome, internal in plastic;
- The camera has DWDR technology which solves the problem of poor or wrong lighting, as well as the problem of frame light;
- The camera has DNR technology, which improves the quality of night shooting by reducing noise and interference from the coaxial cable;
- Hybrid AHD+CVI+TVI+CVBS camera. Works with both hybrid AHD recorders and analog TVL;
- Built-in motion sensor;
- OMNIVISION matrix (USA);
- Fixed 2.8mm wide-angle lens;
- Horizontal viewing angle of 120°;
- The vertical viewing angle is 65°;
- Powerful night IR LED illumination up to 20 meters;
- Enhanced IR LED3.0 night illumination. 300% better shooting quality at night. Durability up to 10 years.
- High light sensitivity Ozzy-IS ;
- High resolution 2 megapixel Full HD 1920 by 1080 pixels camera;
- Real Time video playback (No freeze) 25k/s;
- Easily connect the camera in 5 minutes;
- High quality build and video;
- 1/2.7" 2MP CMOS F22 sensor;
- HTC1080 Camera Processor;
- The camera is compatible with all ISON hybrid DVRs;
- OSD menu. Ability to control camera settings (Color, Exposure, Contrast, White Balance, etc.);
- Availability of the UTC function;
- 12V, 500mA power supply;
- Light sensitivity 0.01 Lux;
- Signal-to-noise ratio >50dB;
- GPU Class: U-47-PRO
- ISON-DIA Technology;
- Energy Class 89CF;
- Core: 24ISQ;
- Live stream: UGT-2
- ISON TURBO-S40 synchronization mode;
- Class express multiplier;
- Thanks to the dome rotation technology, the camera can be mounted to both ceiling and wall;
- The camera size is 90 x 80 x 80 mm;
- Operating temperature from 0° to +55°;
- Included with the camera installation instructions, warranty card, hardware.
- ISON’s warranty is 3 years.
Features of ISON-DVR04P video recorder:
- 4-channel video recorder (16 channels IP, 4 channels AHD) with support for all ISON cameras;
- Supports 4 AHD cameras up to 5 megapixels, 16 ip cameras up to 5 megapixels;
- ISON-GO auto-start technology (Will not reset when power failure occurs);
- Hybrid operation format: AHD, HD-CVI, HD-TVI. IP;
- AHD: Recording Resolution: 5MP 12k/s (1296×1944), 5MP 6k/s (2592×1944) , 4MP 15k/s (1280×1440); 4MP 8k/s (2560×1440); IP: 5MP/4MP/3MP/2MP/1MP Max 12CH@30fps / Analog: Max 4CH@30fps;
- Video outputs: 1xHDMI /1xVGA /1xCVBS;
- Audio inputs/output: RCA 2CH In/ 1CH Out (Audio inputs work only when connecting AHD cameras, when using IP cameras the inputs are not active);
- Ability to connect up to 2 microphones or up to 16 IP cameras with built-in microphones;
- GPU Class: P-12
- ISON TURBO synchronization mode;
- Matrix type: PFE-PREMIUM;
- ISON-DIA Technology;
- Intelligent Cabling;
- Energy Class 89HD;
- Core: 15ISQ;
- Live stream: UGT
- Class express multiplier;
- Supports H264/H265 codecs;
- Adapts to any internet speed;
- Free remote viewing software;
- Supports cameras with built-in microphone;
- HDD auto overwrite function (When the HDD is full, recording does not stop, overwrite starts automatically);
- Supports CCTV cameras with zoom;
- Supports rotating PTZ cameras;
- Support for cameras with motion sensors;
- Supports work with 3g/4g modems (for connection you need router);
- Built-in program zoom (ability to zoom in on objects while viewing);
- Support 1,2,3,4,5 megapixel AHD and IP cameras;
- Support SATA hard disk drives up to 8TB 1pc;
- Availability of alarm outputs.
- New generation CORTEX PRO processor;
- Simultaneous playback from all channels in maximum lossless resolution;
- Availability of the function of sending notifications about motion sensor alarms to E-Mail;
- Availability of remote viewing function from a phone (iPhone, iPad, Android Phone);
- Video outputs: HDMI, VGA, USB, Audio;
- Supports rotary cameras with RS485 protocol;
- Power supply: DC 12V ≤6W;
- Record up to 180 days (with maximum hard disk);
- Case color: black;
- Dimensions of the video recorder: 220*219*50(mm);
- Weight: 2kg
- Availability of Bitvision’s own free cloud:
- Includes brief instructions, control mouse, power supply, hard disk mount.
- ISON’s warranty is 3 years.
